"These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer"

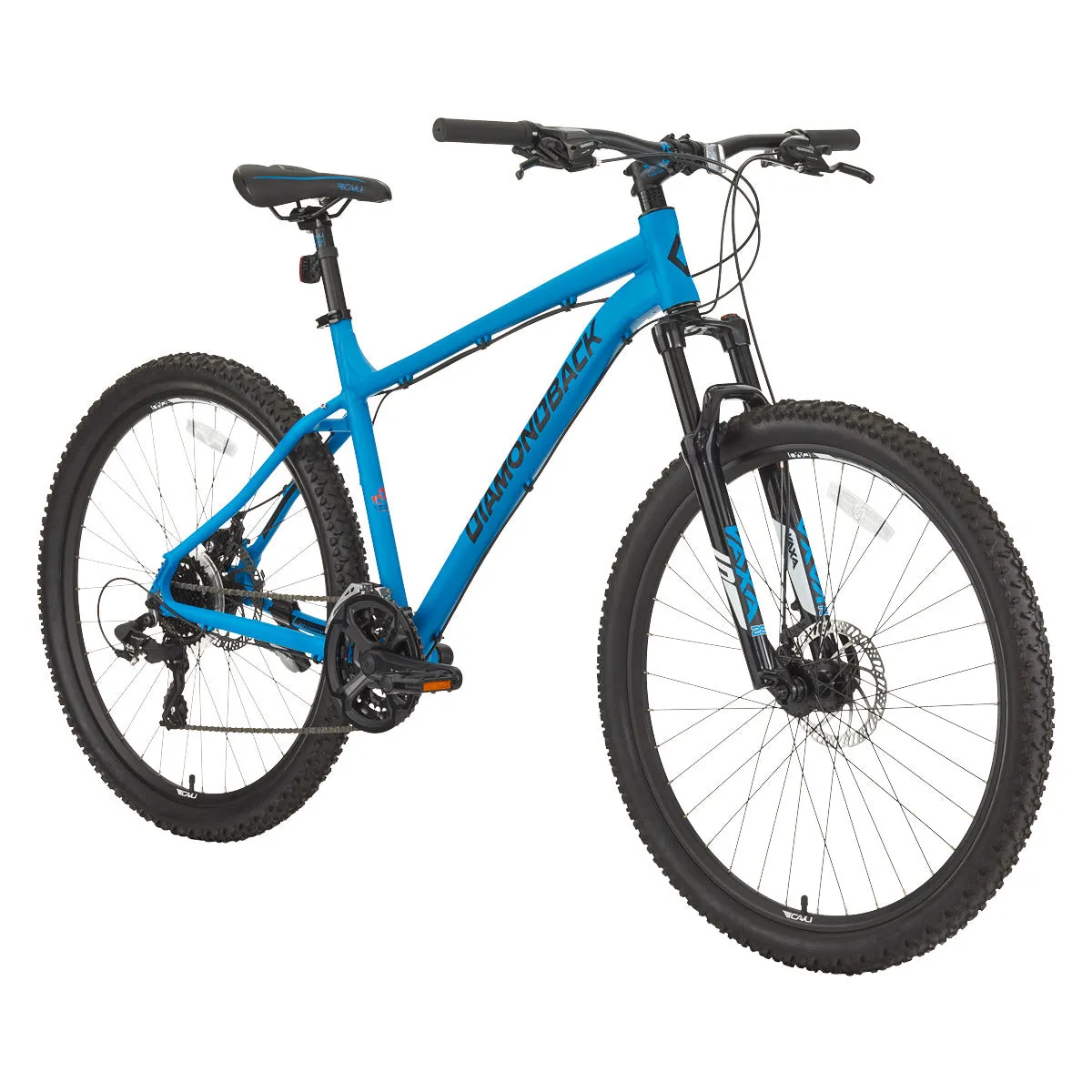

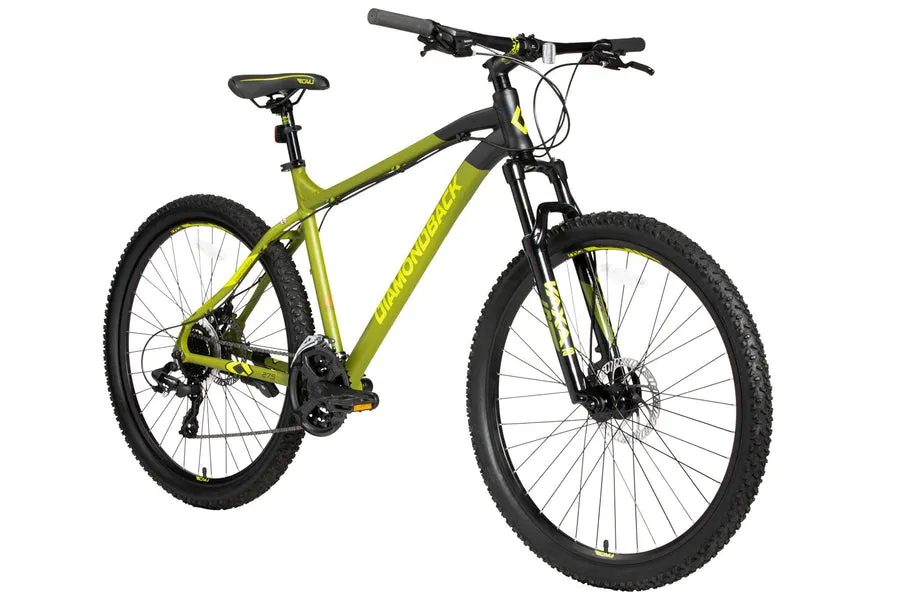

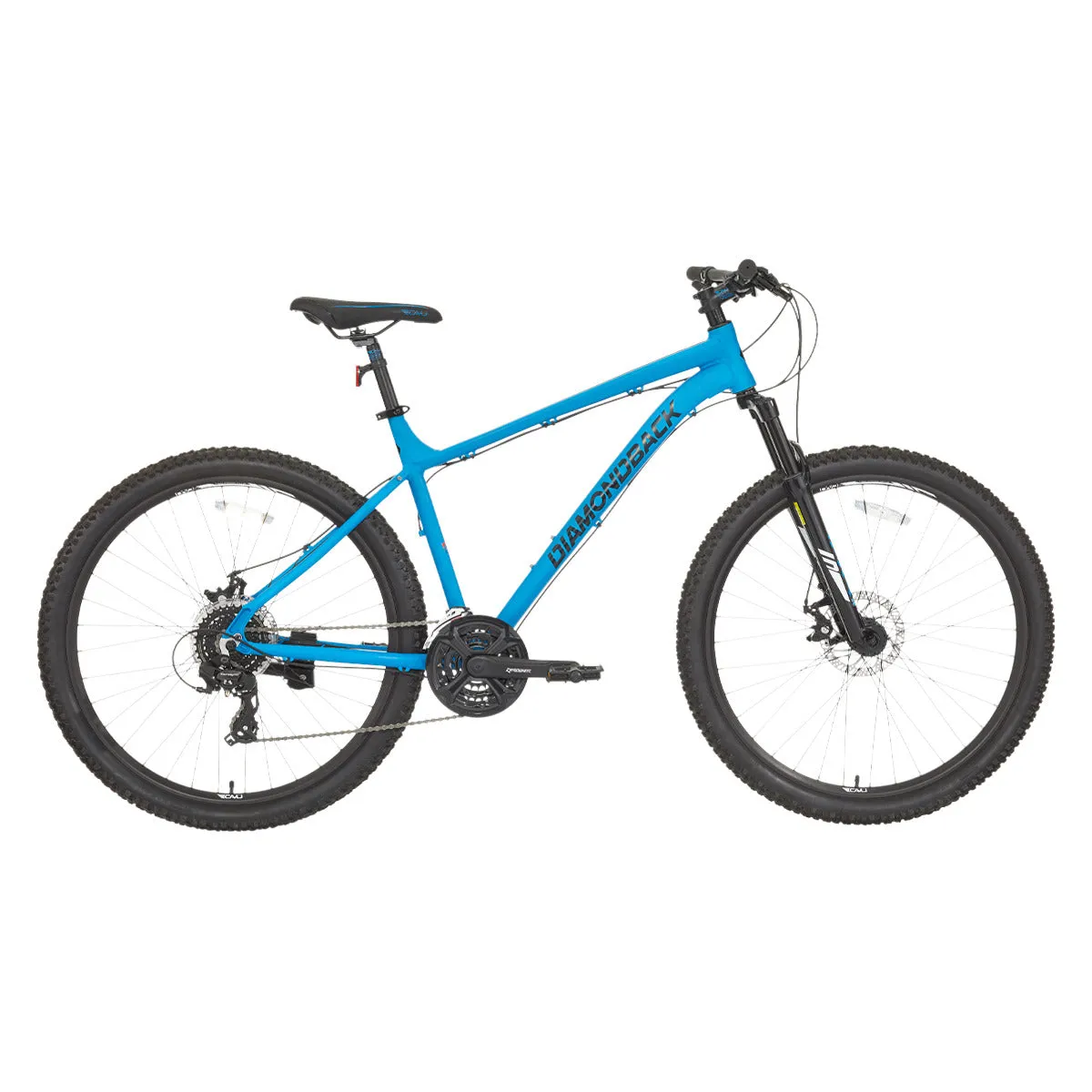

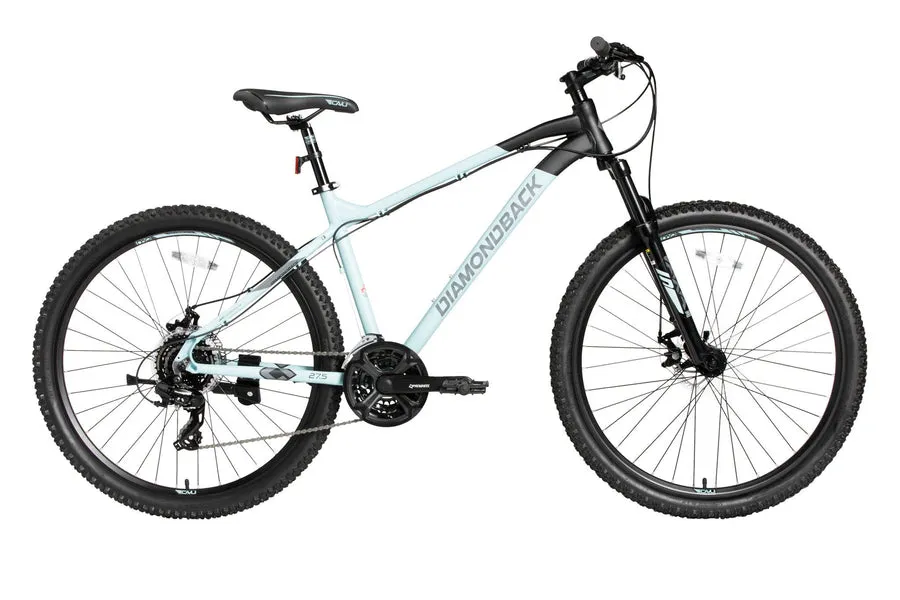

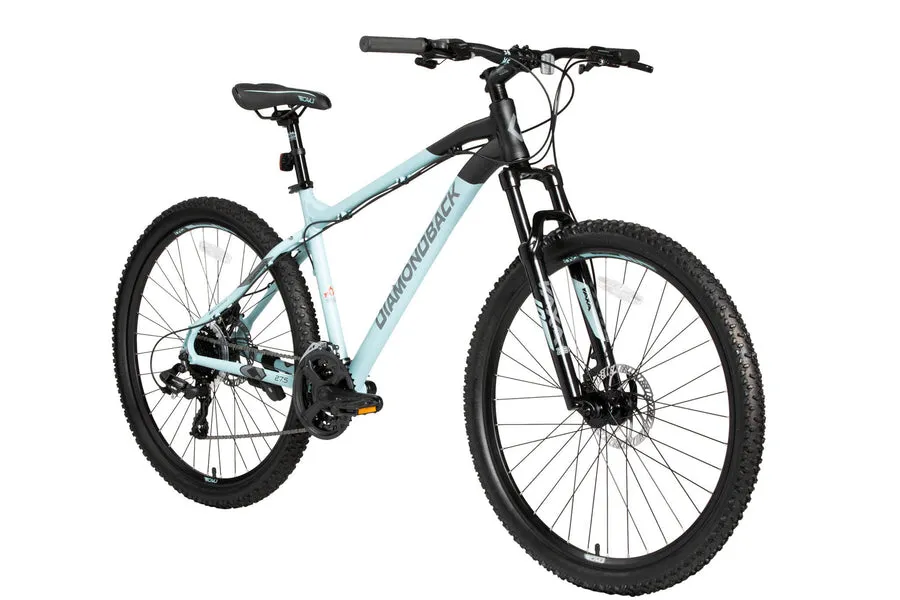

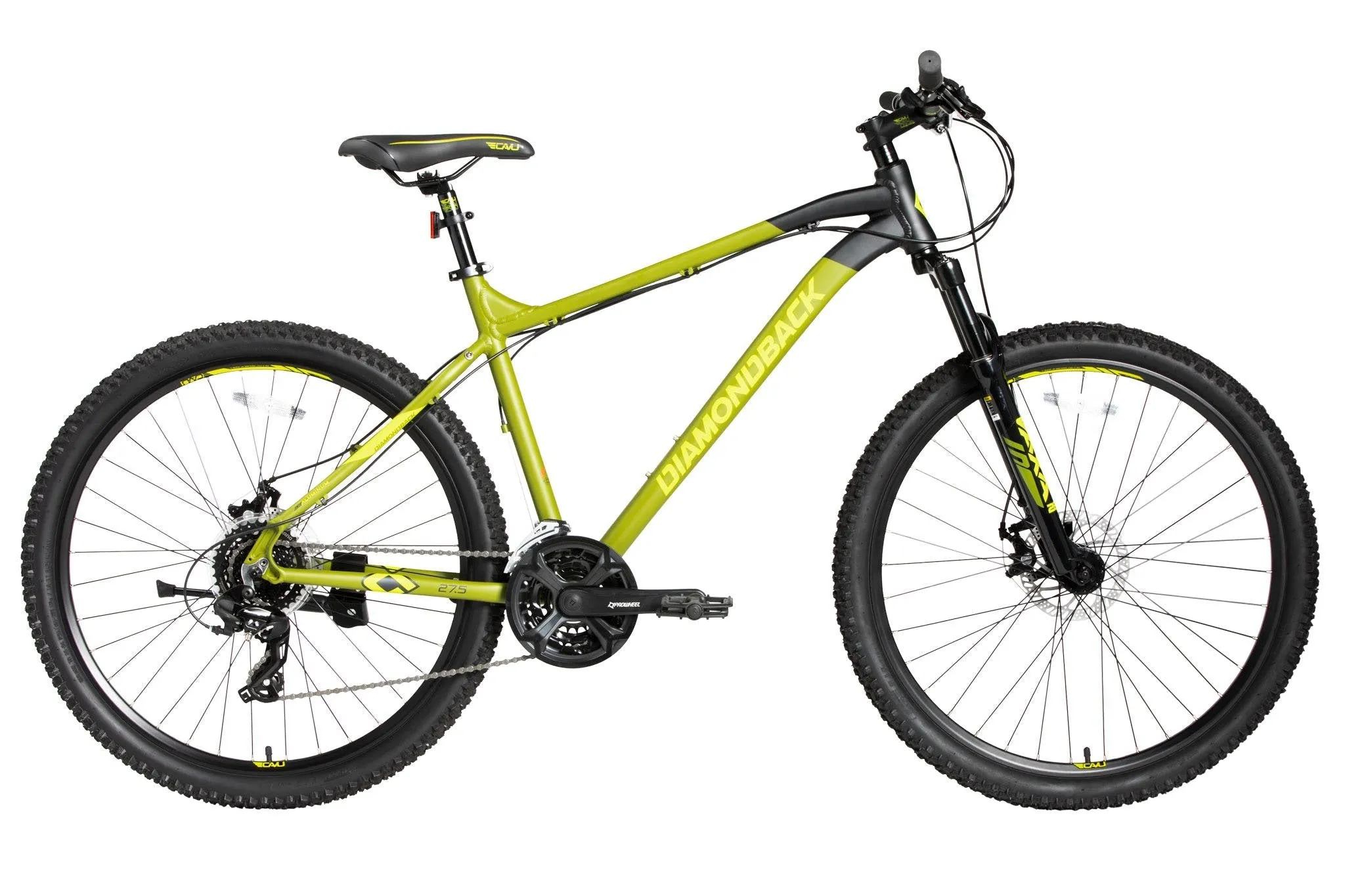

The Diamondback Expresso 27.5” mountain bike is a great choice for ripping around on the trails. The lightweight hardtail design, quality Shimano components, including a Shimano cassette and 24-speed drivetrain provides the rider with a mountain bike that is made for exploring, with lots of gears to get you up and down the hills.

• Lightweight 6061 T6 aluminum frame with Diamondback's formed tubing features optimised wall thickness for a balance of strength, weight, and stiffness that translates to a responsive, and reliable ride

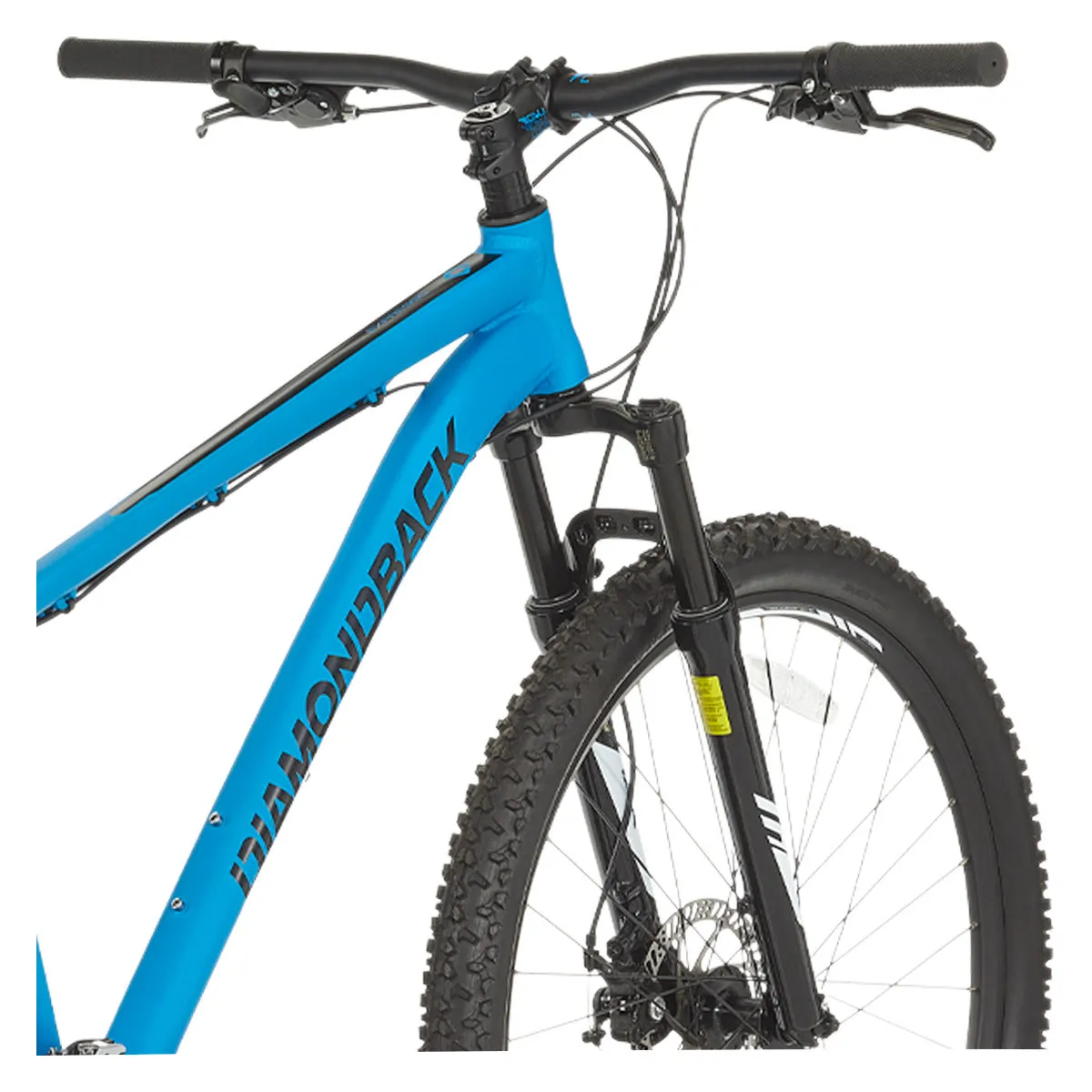

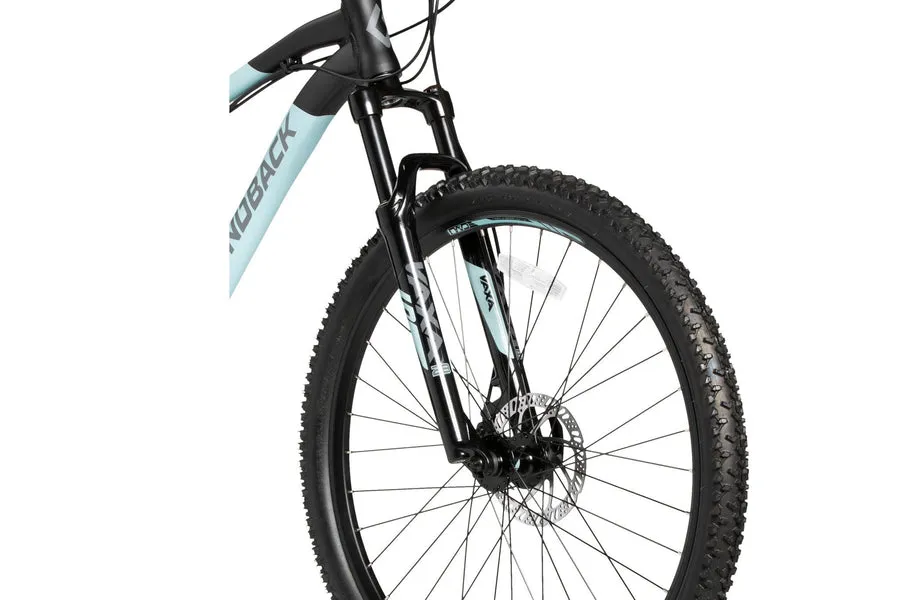

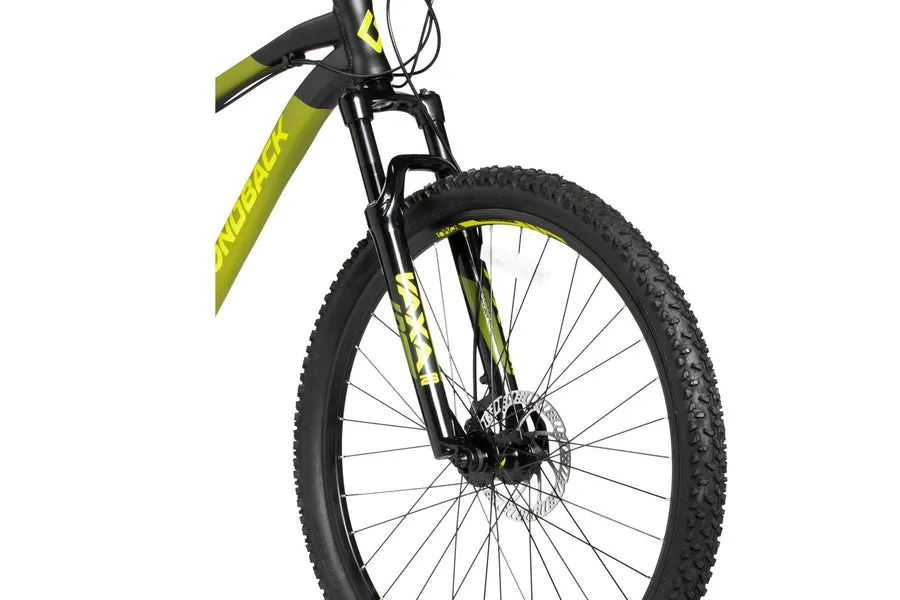

• Vaxa 100mm travel front suspension fork with adjustable preload soaks up the bumps and offers smooth and confident control over various terrain

• 27.5" x 2.25" aggressive MTB tires for traction that will bite into any trail conditions

• Tektro mechanical disc brakes make for sure stopping power in both wet and dry conditions

• Shimano 24 speed drivetrain with EZ-Fire shifters offer precise and deliberate shifting so you can tackle new terrain with confidence

• Easy dependable resin flat pedals so you can jump on your new Diamondback back and ride with confidence

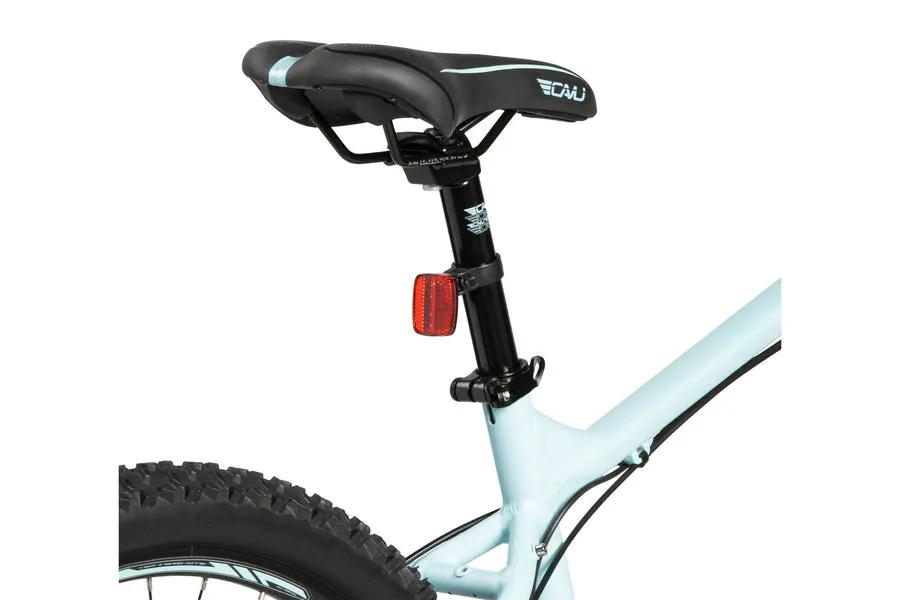

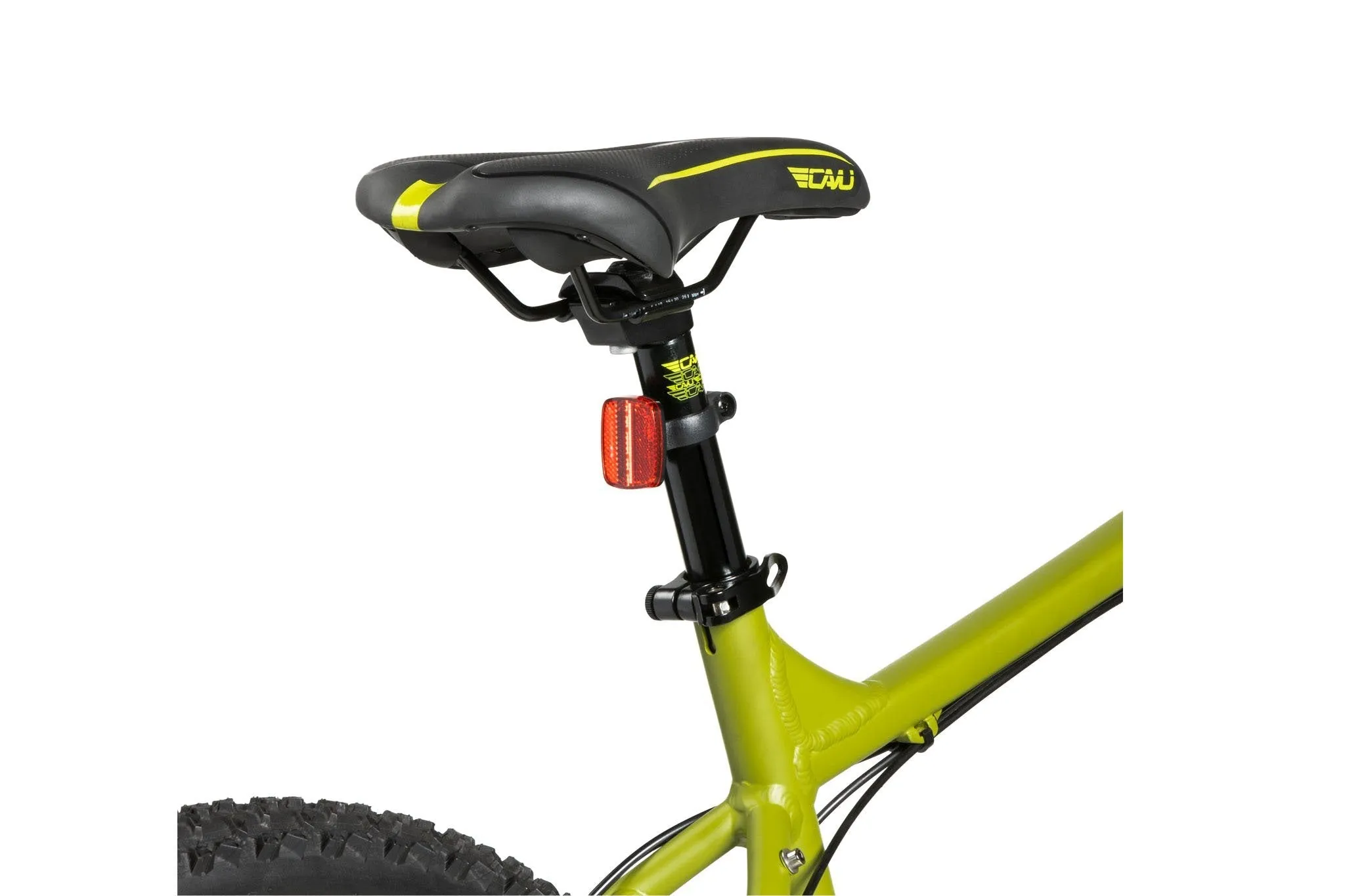

• CAVU Comfort-Mountain saddle is equipped with a quick release seat post clamp so it's always easy to find the perfect saddle height.

• CAVU Lock on grips for a confident and reliable connection point in wet or dry conditions

FRAME
Frame: 6061 T6 heat treated aluminum frame
Rear Shock: N/A
Fork: Vaxa 100mm travel, with pre-load adjust
Cable Routing: External guided w/ full length housing
DRIVETRAIN

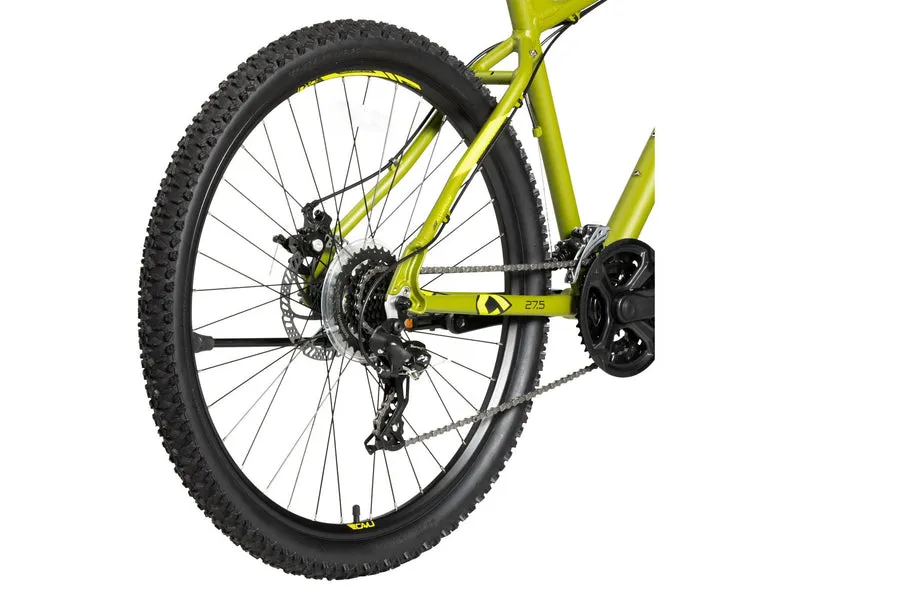

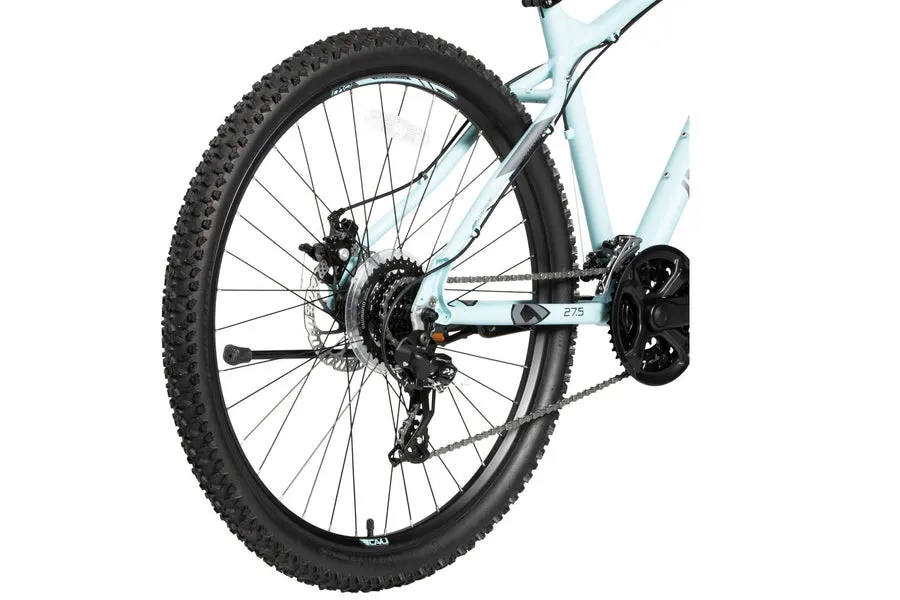

Rear Derailleur: Shimano Tourney TX800, 8 speed
Front Derailleur: Shimano TY700
Shifters: Shimano EZ Fire Plus ST-EF50, 3x8 speed
Cog Set: Shimano Hyperglide HG31 11-34T, 8 speed cassette
Chain: KMC Z8.3

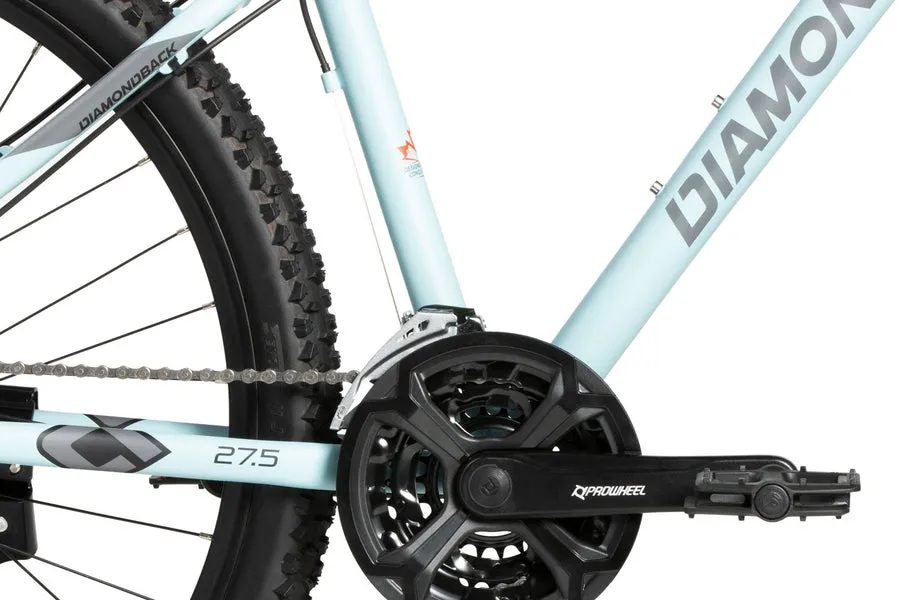

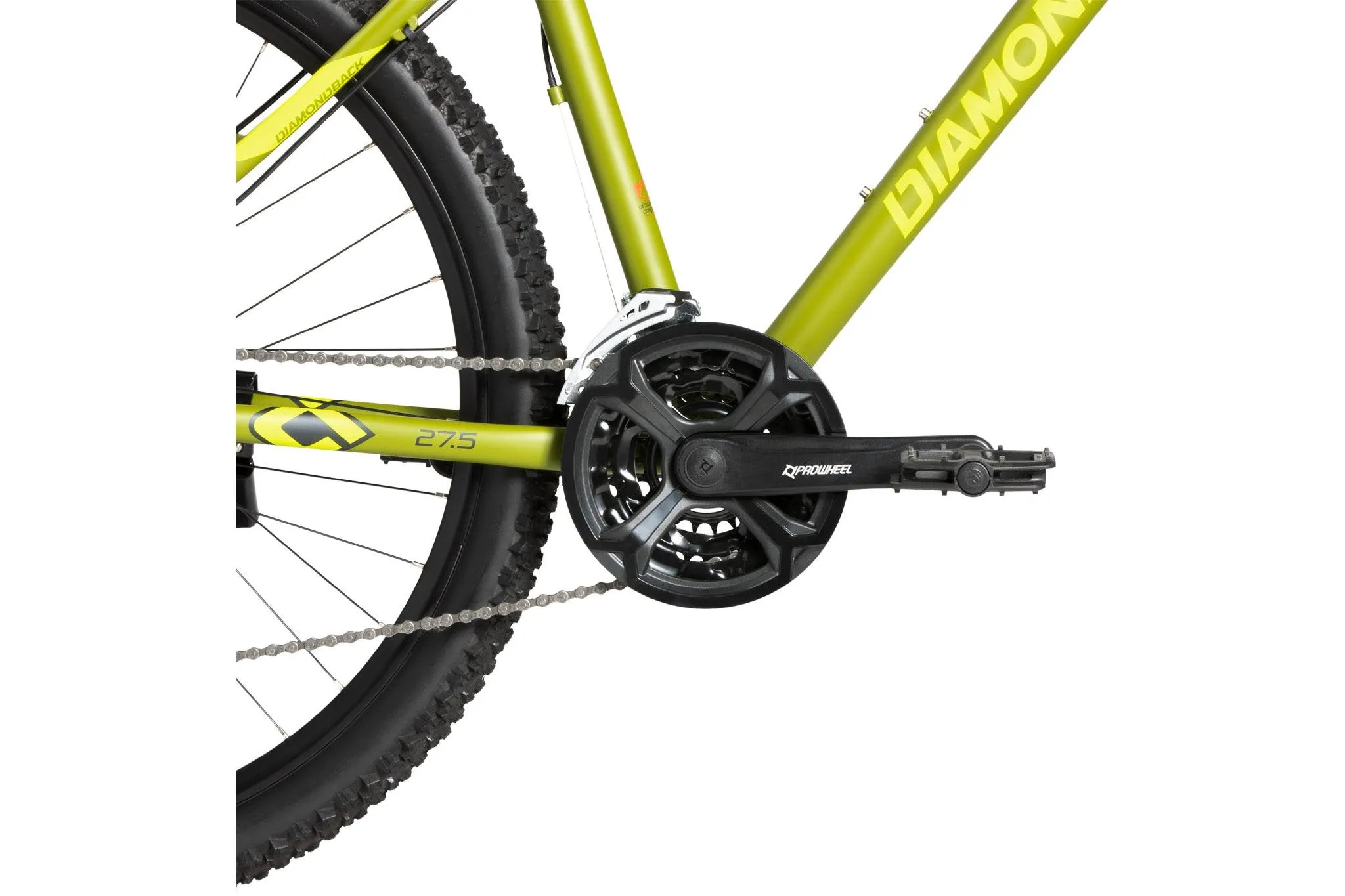

Crankset: ProWheel Alloy, 9/16*170mm, w/ chainring cover
Bottom Bracket: Gineyea BB73-68, square taper, sealed cartridge
COMPONENTS

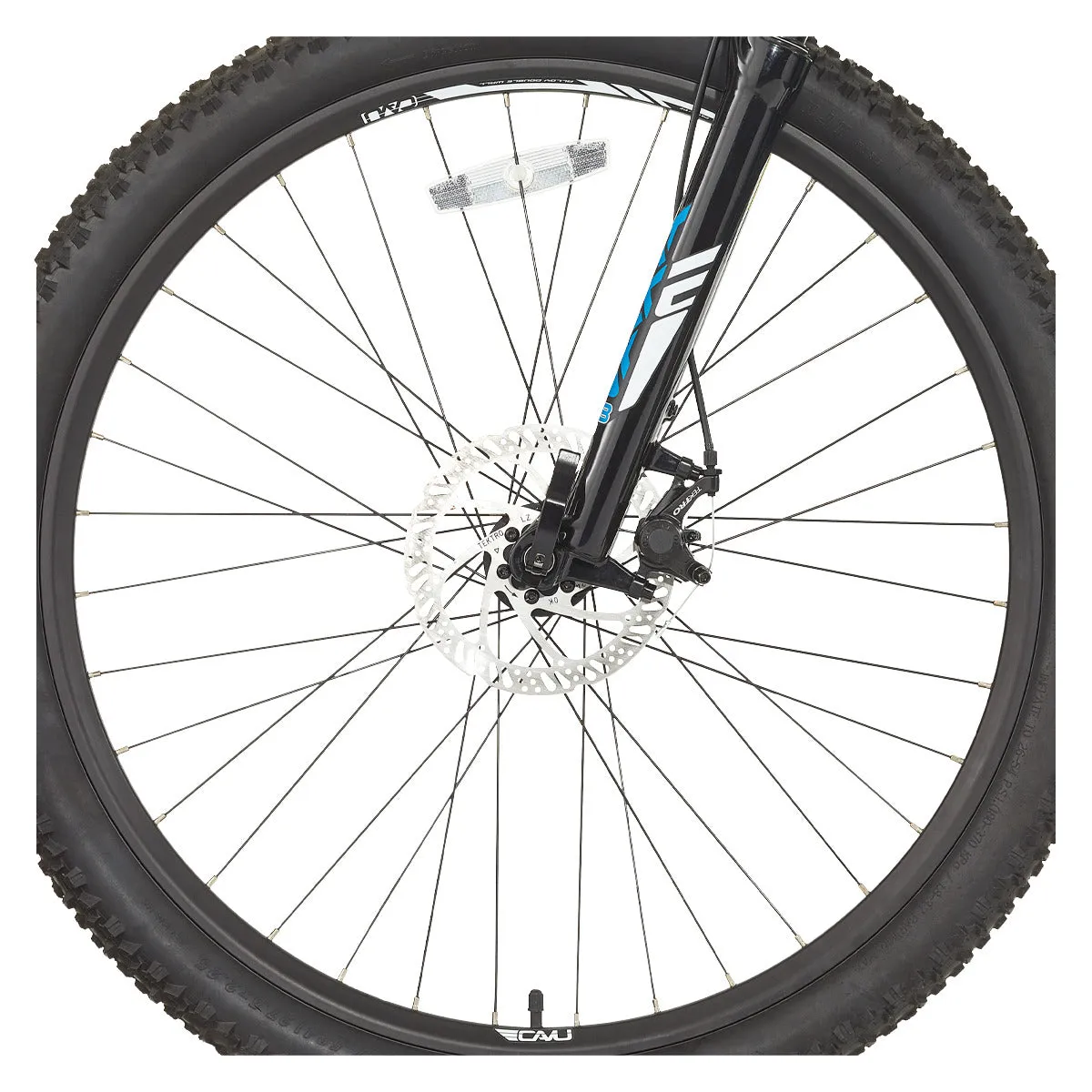

Front Brake: Tektro M280 Mechanical Disc W/ 160mm Rotor
Rear Brake: Tektro M280 Mechanical Disc W/ 160mm Rotor
Brake Levers: Shimano ST-EF50
Headset: Neco H-148, 1-1/8" threadless, Semi-integrated
Seat post: CAVU alloy, 27.2mm x 300mm
COCKPIT

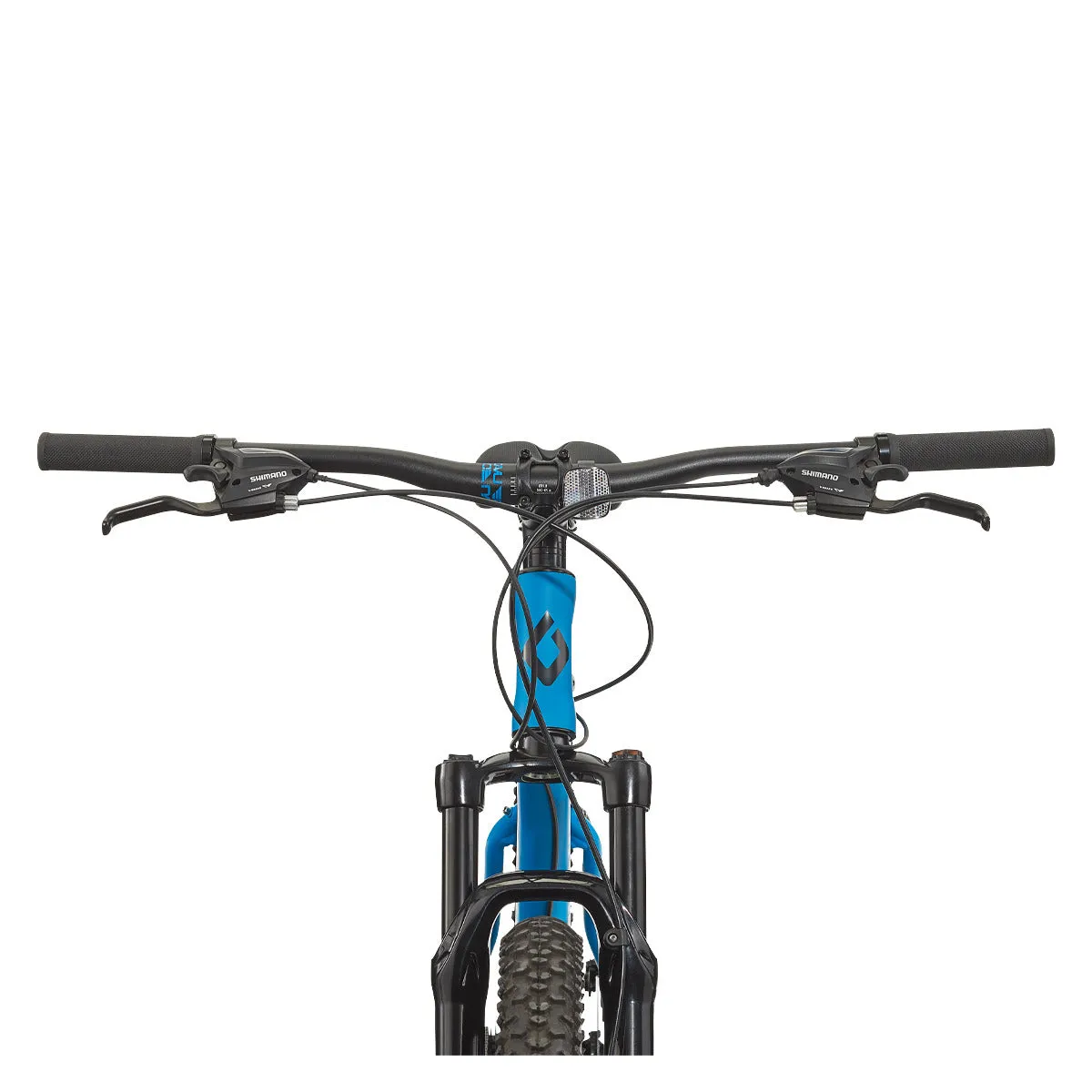

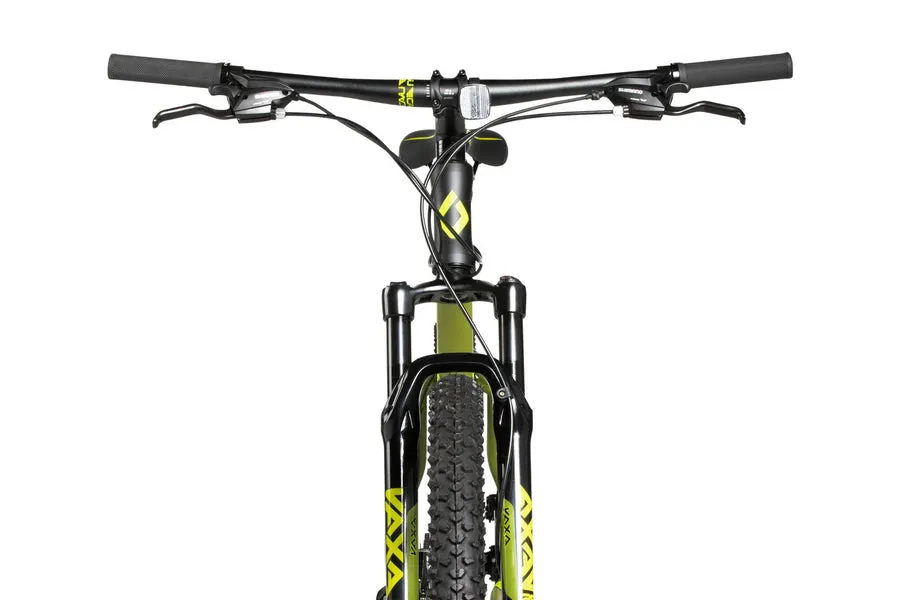

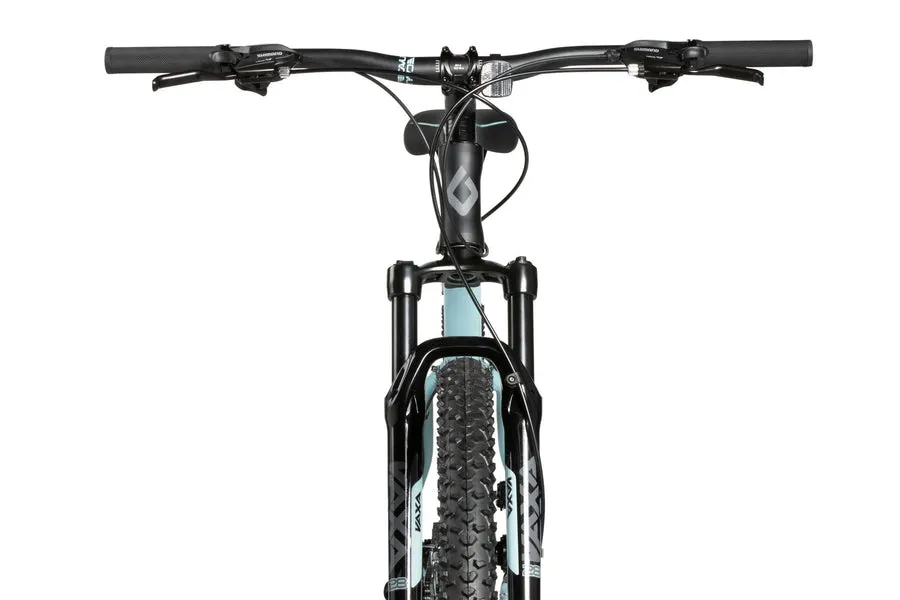

Handlebar: CAVU, 31.8mm*760mm
Stem: CAVU Alloy, 80mm, 7 degree rise
Saddle: CAVU MTB
Pedals: 9/16" Resin body, flats
Grips: CAVU Lock-on w/ closed end
WHEELS/TIRES
Rims: CAVU Aluminum double wall, 36 hole, 27.5"
Front Tire: 27.5" x 2.25" for all-terrain
Rear Tire: 27.5" x 2.25" for all-terrain
Tubeless Ready: No
Front Hub: CAVU, 36 H alloy w/ quick release
Rear Hub: CAVU, 36 H, alloy, w/ quick release
